Astro Pneumatic EuroPro High Solids Spray Gun

DURABLE & LIGHTWEIGHT
• Forged body provides longer tool life
• Anodized body for corrosion protection
• Slick finish for faster & easier cleaning
• Internal coated passages
• Stainless steel needle and fluid tip
• Lightweight: 325 grams (0.7 Lbs)
HIGH EFFICIENCY
• Unique pattern designed for great coverage,
optimal overlapping
• Low overspray (bounce back)
• Great transfer efficiency
• Superior atomization
• Innovative High Efficiency (HE) advanced
technology
QUICK THREAD TECHNOLOGY
• 1 Turn to lock/unlock the air cap
• 3 Turns to lock/unlock the fluid tip
• Wide threads for easy cleaning
• M16*P1.5 female thread fluid joint
• Compatible with most traditional and disposable
cup systems
SMOOTH OPERATION
• Soft trigger pull to reduce fatigue
• Precise lubricated adjustment knobs for better
control
• Innovative CNC machining to a

Nozzle Sizes Available: 1.2mm (EUROHE102), 1.3mm (EUROHE103), 1.5mm (EUROHE105) 1.7mm (EUROHE107), 1.9mm (EUROHE109)
• Cup Capacity: 600ml
• Operation Pressure: 29psi
• Gun Dimensions W x H: 7" x 5-34" (175mm x 145mm)
• Avg. Air Consumption: 10.5 - 12.5cfm
• Air Inlet Thread NPT: ¼”
• Required Compressor: 3 - 5hp
• Max. Pattern at 6" to 8" Distance: 11" - 13" (280-330mm)
• Air Hose I.D. Size: 6 - 8mm

Compatible Adapters:
• 3M Adapter: 9, 16016, 3M PPS2: #S27, 2611
• Norton Paint System Adapter: 21664 9A
• DeVilBiss DeKups: DPC-10
• SATA’s Adapter #13 Part #150136

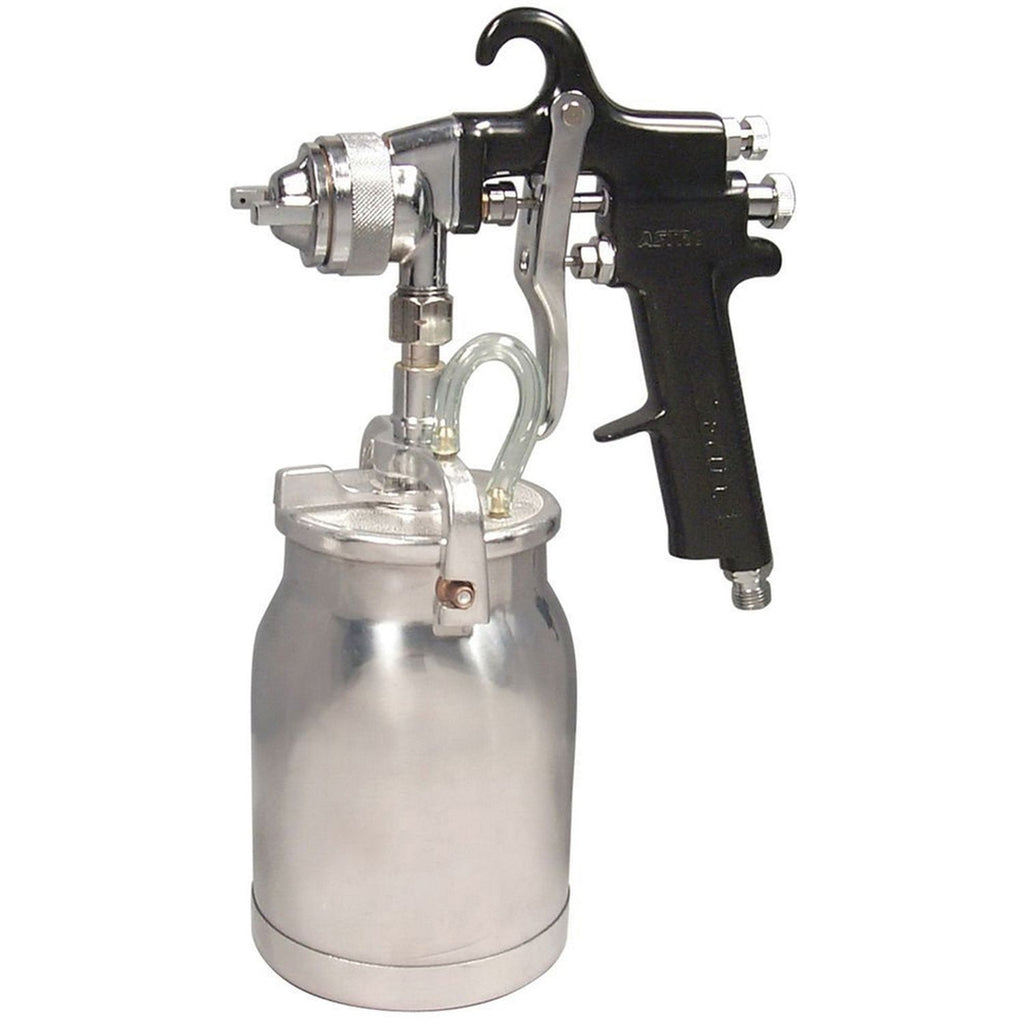

Astro Pneumatic Conventional Spray Gun with Cup 1.8 mm Nozzle - AST-AS-7SP
